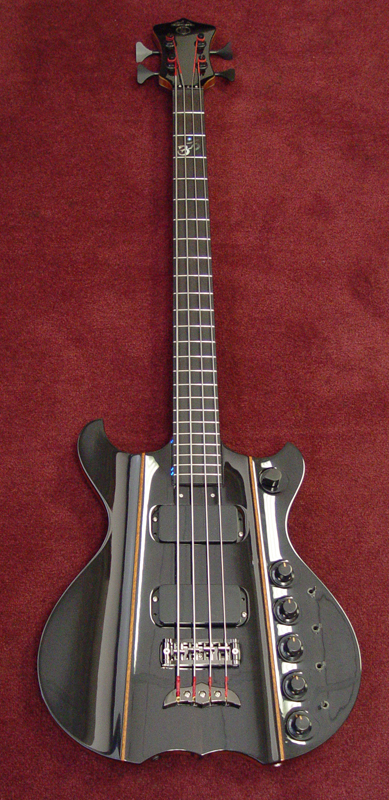

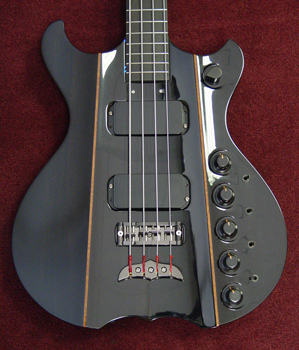

This closeup picture should help navigate the reflections
on the top in the first picture. It's rare to find black Ebony wide enough to make a bookmatch to center top. If you want the
look, you need to splice the material when it isn't available. Instead of trying to conceal this splice, we tossed around the idea of
making the splice a feature. What started out as a simple splice evolved into the "suspension bridge" you see here, sculplted
with the Mahogany acting as towers to the cables of Ebony. These Mahogany runners echo the taper of the fingerboard.
|
|
|
|
|
|

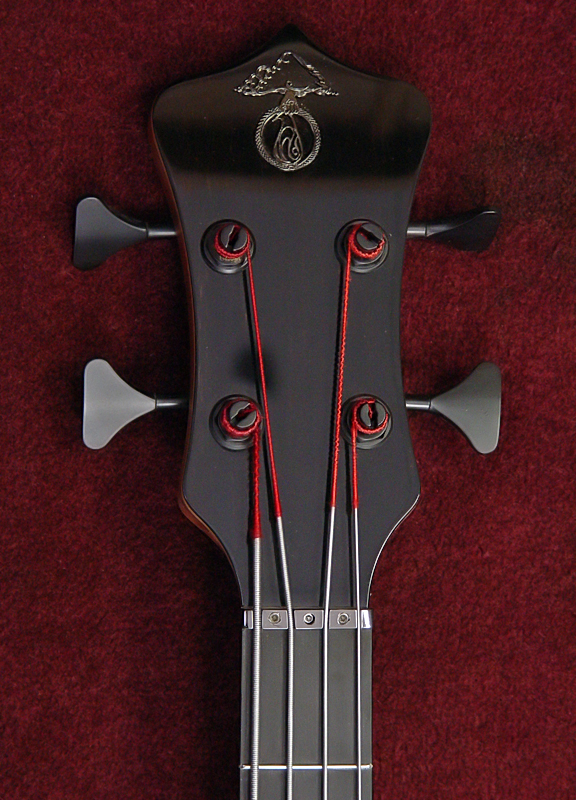

A stealthy kind of logo with black finish on a shiny Ebony
front veneer supports the "simple" theme of the bass. The Ebony front and back have the high gloss rubout - it almost looks

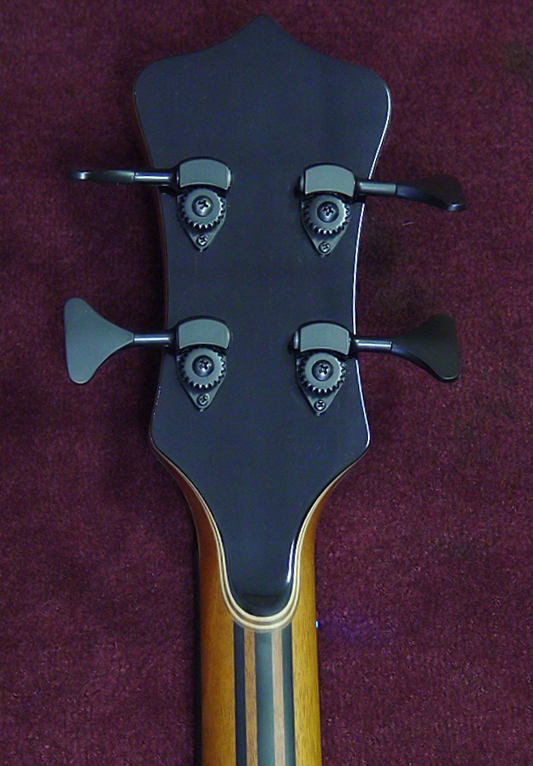

like a piano. In the view of the back of the peghead, the satin finish on the neck is easily identified. The satin rubout continues along the edge of the peghead. It's
one of those features that is so cool, you hardly even notice it. ![]()
|
|
|
Aum, the mystical syllable. Close your eyes, take a deep
breath and say it out loud, pronouncing each letter AAAA-UUUU-MMMM. The Aum symbol is inlaid in black Tahitian mother of pearl
with a small blue LED. Side position markers on the bass are matching blue LEDs.![]() |
|
|

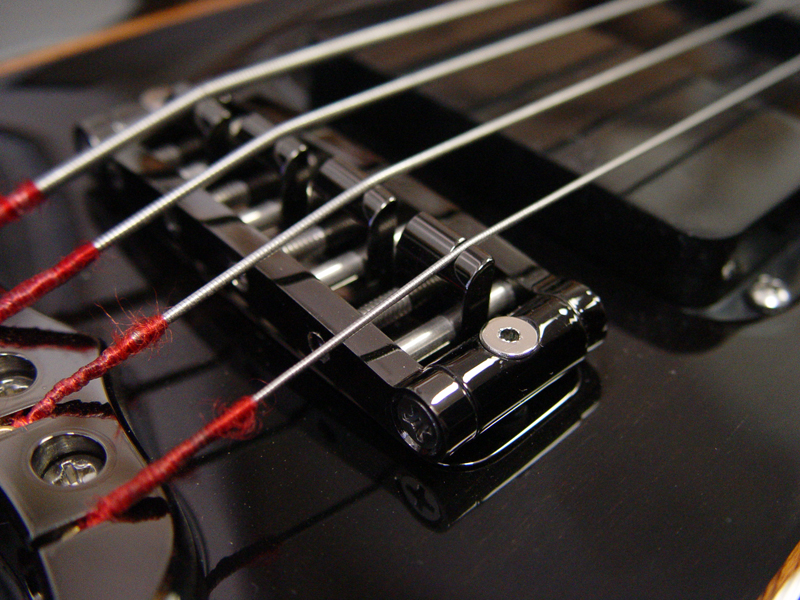

The concealed hardware bridge has the deluxe curved rails.
If you're having trouble seeing the curve, look at the spacing cylinder where the height adjustment is located.
Each rail has a little "kink" at each end to follow the cylinder. Another almost invisible but ultra cool little detail. |
|
|
|
When Marc originally ordered his bass, he also
ordered knobs from Roger at THG. They had matching Bird's-eye Maple indicator lines for the Bird's-eye Maple
top we thought we were going to use. Once we cut it open, it had some very unattractive smears inside and wasn't suitable for
a top laminate.
Tucked safely in a drawer until the bass was done, when we mounted the knobs, they just didn't look right. So we asked Roger to
make the set shown in this photo, with Mahogany indicators. Sweet. Each knob is hugged by a crescent of the carved Ebony top
to create a flat surface to mount it in place.
|
|
|
Big Bird tailpiece, is sort of like an iceberg - there's
a lot more of it
under the surface. The deep part of the tailpiece is mounted in a
route in the body. To keep distractions down, we sanded down the pickup shells
and removed the gold Alembic script from the lower right corner and polished to a similar finish as is on the bass.
|
|
|

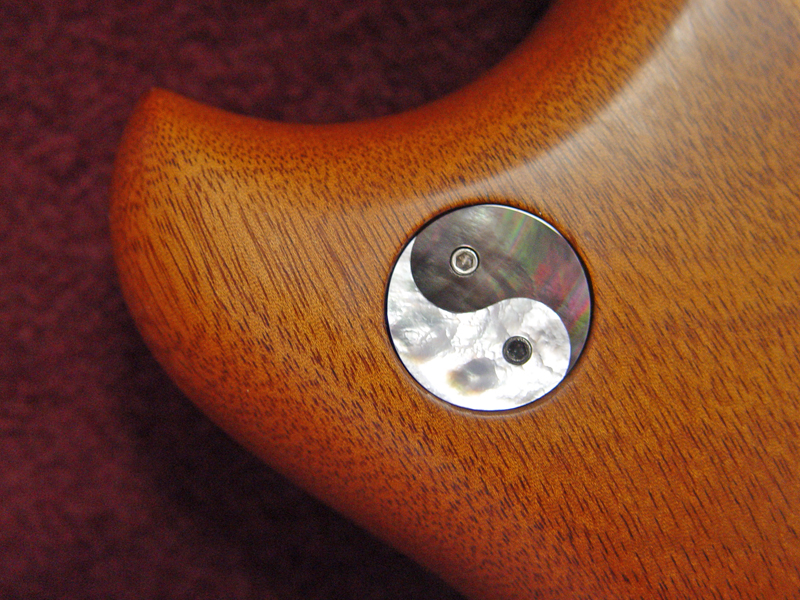

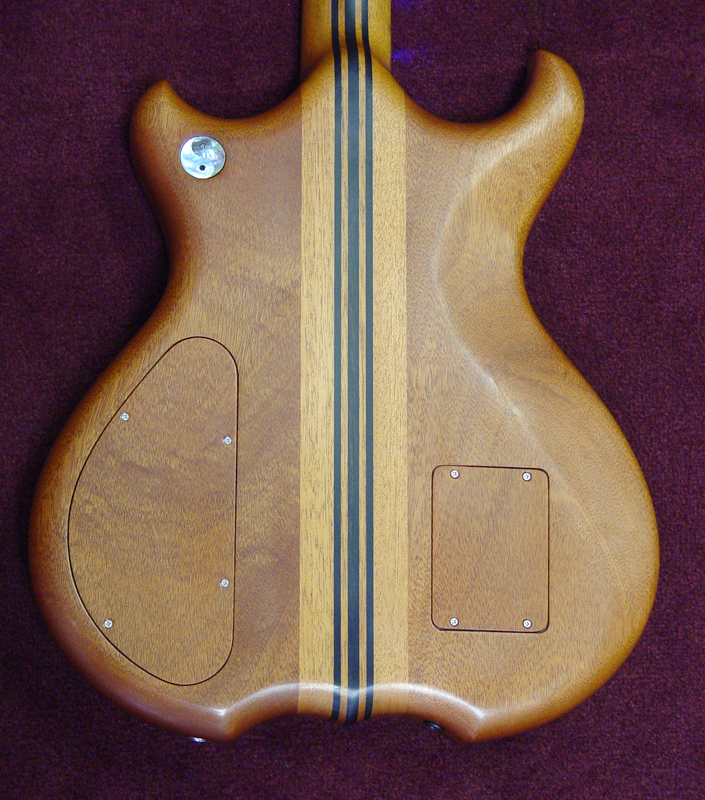

Taiji (aka yin and yang) inlay cover conceals the brass access cover
for where the pickup selector switch mounts. The inlay is crafted from both black Tahitian and white mother of pearl. Note the blackened screwhead on the
white side to represent the yin component of the yang element. Marc wrote to us,
"I can't praise my new bass enough. I am having the best playing experiences
of my life. The bass is a total success, and exceeds my every
expectation. I can't stop smiling when I look at it, or hold it, or think
about it."
|
|
|
|
|
|
SPECIFICATIONS
|

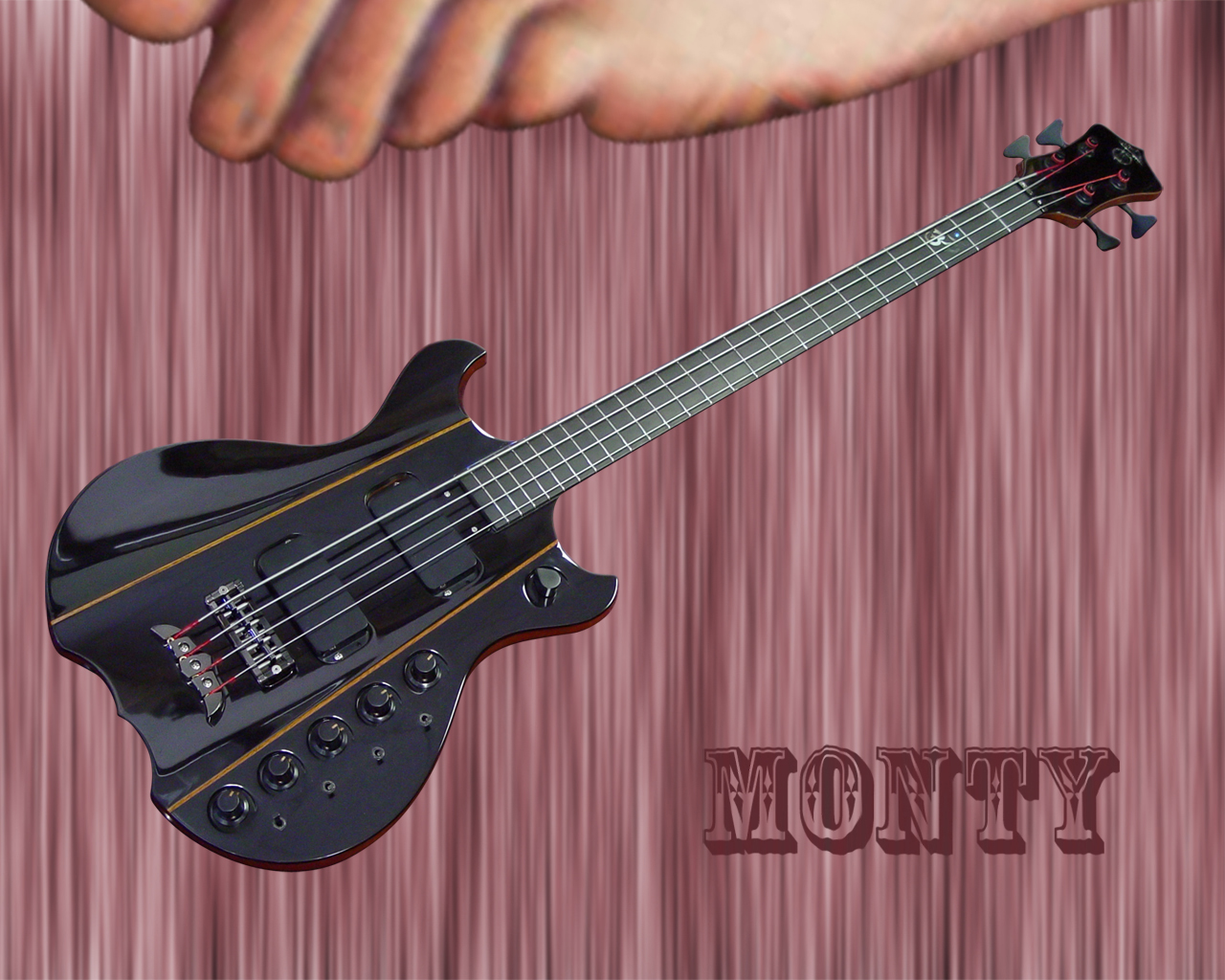

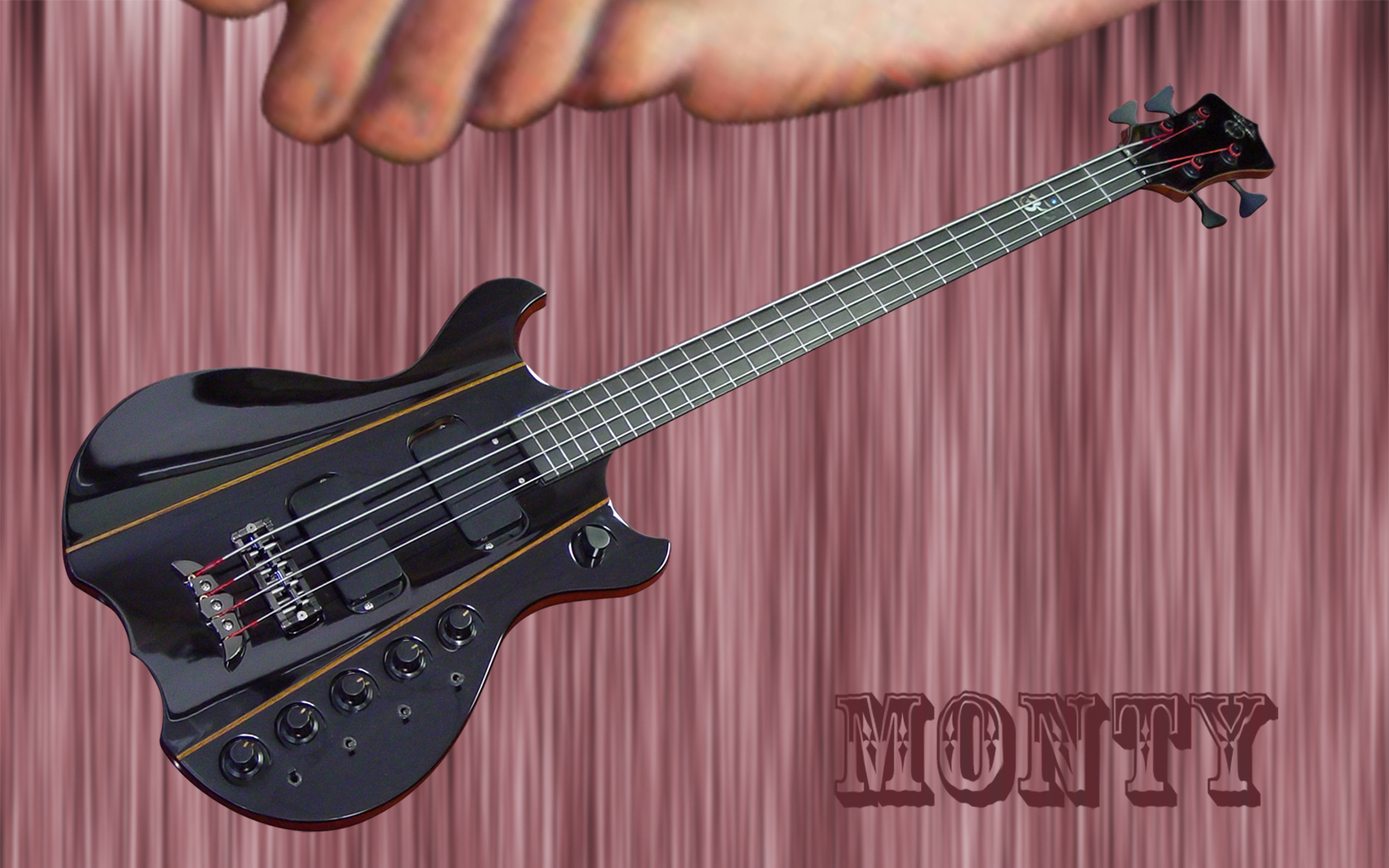

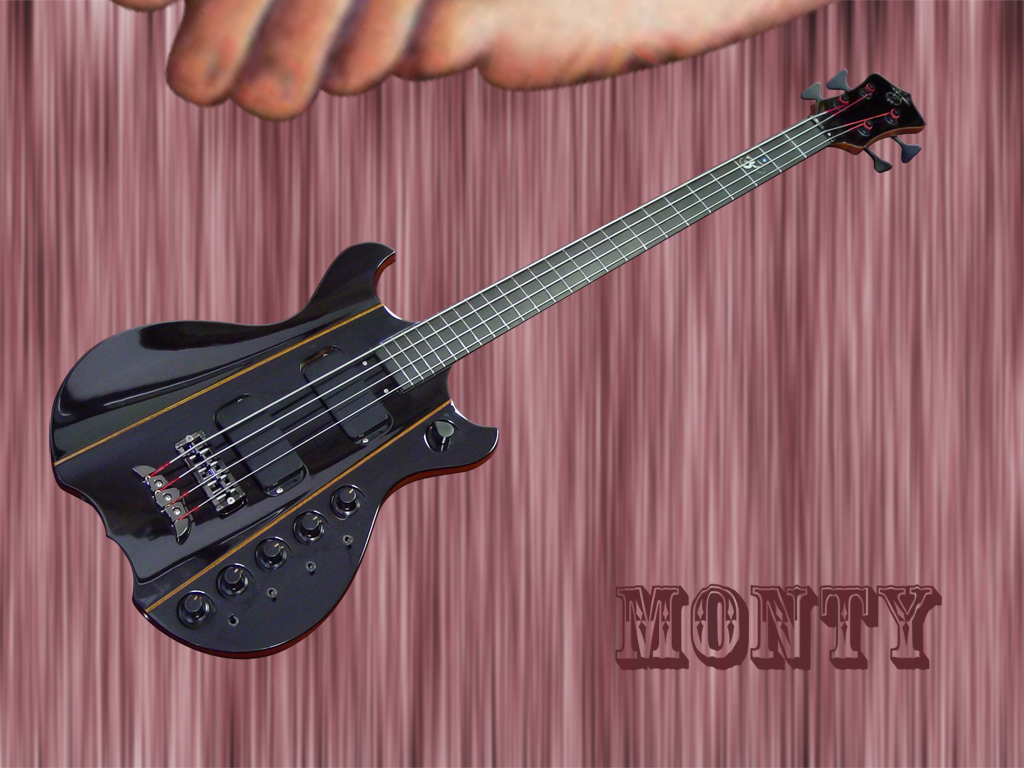

Wallpaper:
